Live Single Cells. Deepest Functional Insights.

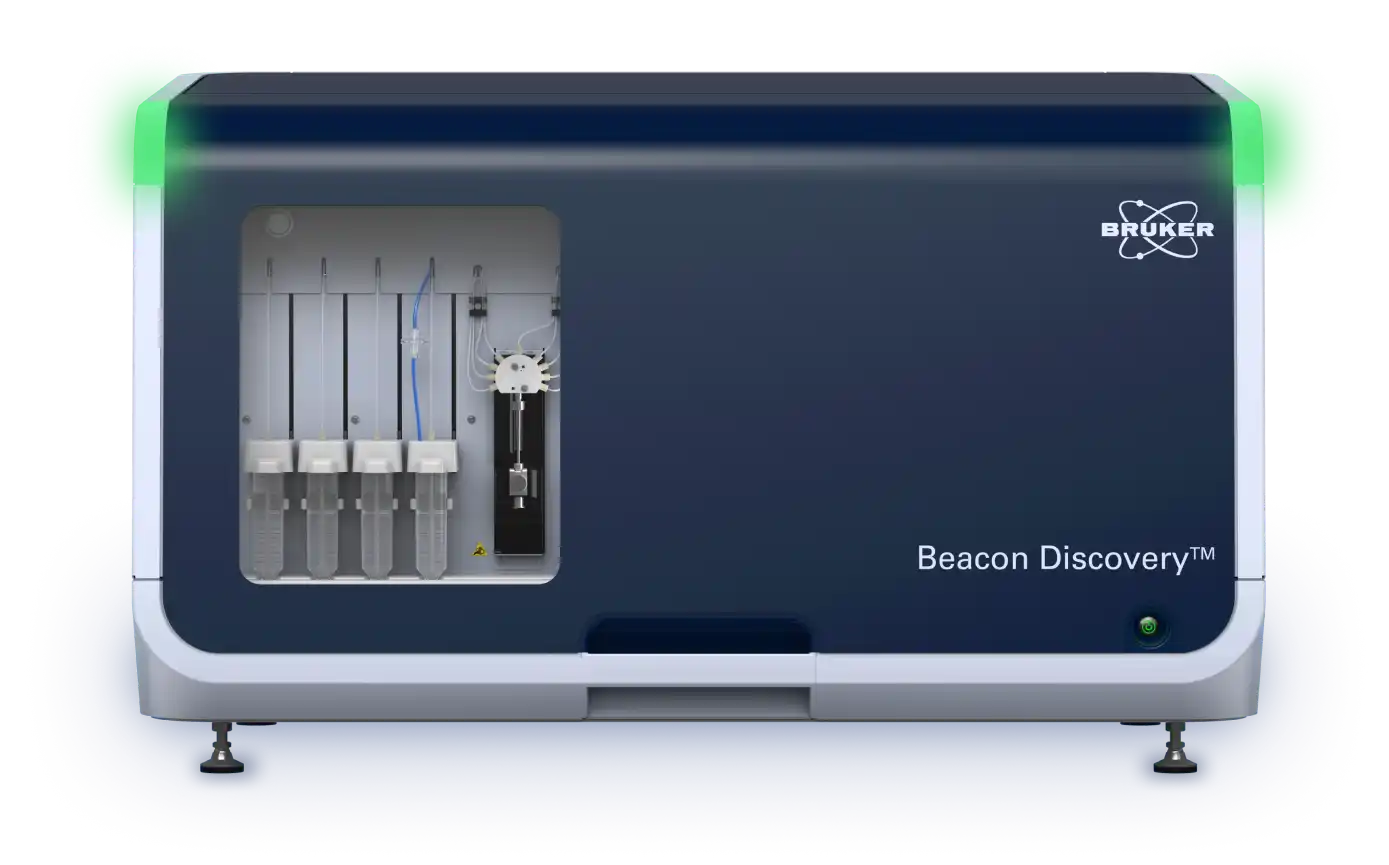

hero-instrument-beacon-discovery-shadow
Highlights

An Unmatched Live Single Cell Functional Solution

Experience the full potential of live single cell functional analysis with Beacon Discovery™. Powered by optofluidic technology, it enables researchers to explore multimodal and temporal cellular responses in real time, seamlessly linking functional data to sequencing from the same single cell for deeper scientific breakthroughs. This accessible, compact, and flexible system delivers unparalleled insights into immune profiling, cell therapy, and antibody and TCR/CAR discovery.

Why Choose Beacon Discovery

feature-icon-sq-accessible-circle

Accessible

Lower cost of ownership, reduced running costs, and intuitive interface - for easy adoption

feature-icon-sq-flexible

Flexible

Deliver end-to-end workflows for immune profiling, antibody discovery, and custom functional assays

feature-icon-sq-compact

Compact

Benchtop size maximizes lab space without sacrificing functionality

feature-icon-sq-proven

Proven

Built on widely published and validated optofluidic platform

Designed to push the boundaries of live single-cell functional analysis, it offers exquisite control over single-cell experiment design. It enables live cell imaging, multiple sequential assays on the same live cells, and captures dynamic biological responses across timepoints. It also recovers high-value cells, enabling researchers to link on-chip functional insights with off-chip genomics and transcriptomics (TCR-seq, BCR-seq, mRNA-seq) from the same single cells. These capabilities go well beyond what traditional platforms can offer.

Applications

Understand the Life of Single Cells

The Beacon Discovery is a flexible platform for translational researchers in academia, and biopharma industry exploring high-parameter, dynamic functional cellular analysis. It enables T cell profiling for immunotherapy, antibody discovery, antibody profiling, and vaccine development.

Researcher Spotlight

Features

Built for Easy Use and
Real-Time Data Exploration

Easy-to-Use Interface

Designing complex single-cell functional analysis experiments has never been easier. The Beacon Discovery includes a new easy-to-use wizard-based interface (included in the Cell Analysis Software (CAS) Suite) for designing multistep experimental workflows. Set up and execute sophisticated pre-defined and customized workflows in just a few clicks.

Deep Data Analysis

The Cell Analysis Software Suite enables real-time data exploration with automated and manual image analysis. Researchers can make informed decisions based on biomolecule secretion, target killing, and cell-cell interactions over time. Machine learning streamlines cell segregation, selection, and counting. UMAPs simplify multi-dimensional functional analysis.

Accessible System Based on Proven Optofluidic Technology

Key Product Features

  • Compact, benchtop instrument
  • Throughput: 1 chip, up to 20,000 single cells per run
  • Four fluorescent channels (exchangeable cubes)
  • 4x bright field magnification
  • Intuitive, customizable software
  • Compatible with all OptoSelect® chips

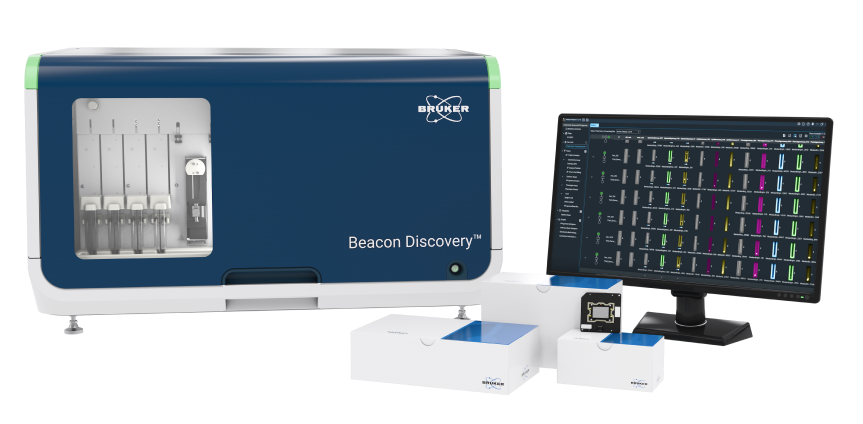

instrument-family-card
~ai-620732e6-ef31-4a31-8555-d36cacdd3bda_
Beacon Discovery™
Talk to a Bruker Specialist

Explore how live single-cell functional analysis and the Beacon Discovery can elevate your research

Technology

Unique Features of the Beacon Technology

At the core of the Beacon technology is the OptoSelect chip, which combines nanofluidics and Opto-Electro Positioning (OEP) technology, referred to as optofluidics. Optofluidics leverages light and millions of light-actuated pixels to manipulate cells and beads with precision, empowering precise isolation, and characterization of single cells at scale. Single cells with phenotypes of interest can then be recovered for further downstream analyses, including sequencing.



Opto-Electrical Positioning (OEP) Technology

Provides Exquisite Control of Cells and Beads

  • Uses light to move cells around and into the NanoPens
  • Allows for thousands of parallel single cell experiments at once

NanoPen Horizontal Design

Allows Continuous Media Perfusion

  • Provides minimal disruption of the contents in the NanoPens
  • Allows for exchange of oxygen, nutrients, and waste in and out of the NanoPens in a matter of seconds
  • Keeps cells alive and healthy for days to weeks

technology-nanopen-horizontal-graph

Flexible to Run Chips with Flexible Chip Formats

Tailor experiments to specific research needs with flexible chip formats. The Beacon Discovery system supports multiple chip configurations, seamlessly adapting to diverse workflows and applications.

optoselect-chip-1750b-gold
optoselect-chip-1750b-gold
optoselect-chip-3500-gold
optoselect-chip-large-20k-gold-full
How It Works

Streamlined Workflow for Rapid Discoveries

The system integrates customizable Bruker Cellular Analysis reagents and OptoSelect chips to deliver a seamless user experience.

  • Load Reagents & Samples - Place reagents in the reagent bay (A) and load OptoSelect chips into the sample bay (B).
  • Guided Workflow Setup - The Workflow Wizard (C) walks you through experiment setup and execution.
  • Exquisite Control on Single-Cell Experiments - OEP technology gently moves and positions live single cells and reagent beads in NanoPens, delivering high-precision functional characterization.
  • Multi-Modal and Temporal Analysis with Live Single-Cell Imaging - The OptoSelect chip and horizontal NanoPen design enables continuous perfusion and rapid reagent exchange—keeping cells alive for days or weeks. Run multiple assays on the same cells across time points. Four exchangeable fluorescent channels (D) enable real-time brightfield and fluorescence imaging with minimal hands-on time.
  • Data Capture & Sequencing Integration - Identify and recover high-value cells, then link functional insights to transcriptomic and genomic sequencing for deeper analysis.
beacon-discovery-how-it-works-fade

Beacon Discovery

Technology Access
Program

World Class Support, Just a Click Away

Access protocols, manuals, technical bulletins, training webinars, and more through our support portal.
We’re here to ensure your success at every step.

Beacon Discovery

Unleash the Full Potential of​ Your Single Cell Research

Complete the form to connect with us and discover how the Beacon Discovery system can enhance your research adventure. Our expert team will be able to answer your questions, show you how the Beacon Discovery  system works, and share the most relevant datasheets & case studies for your research.
